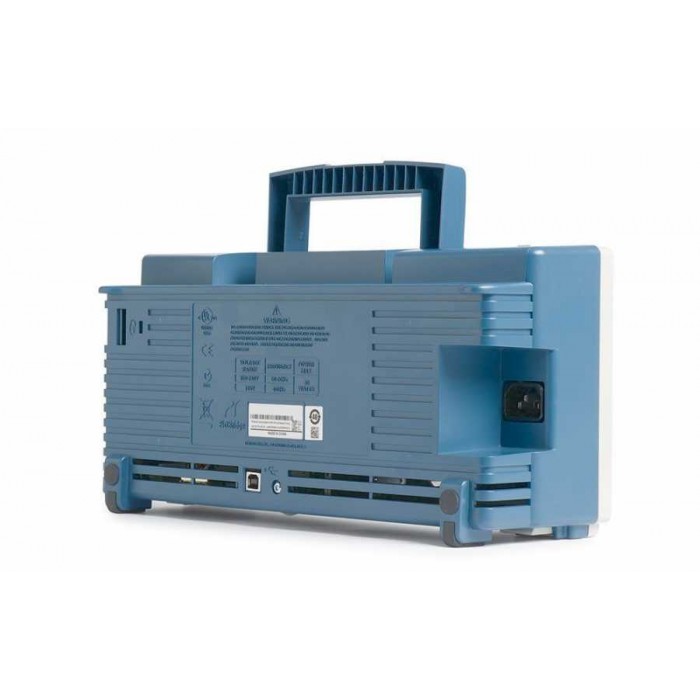

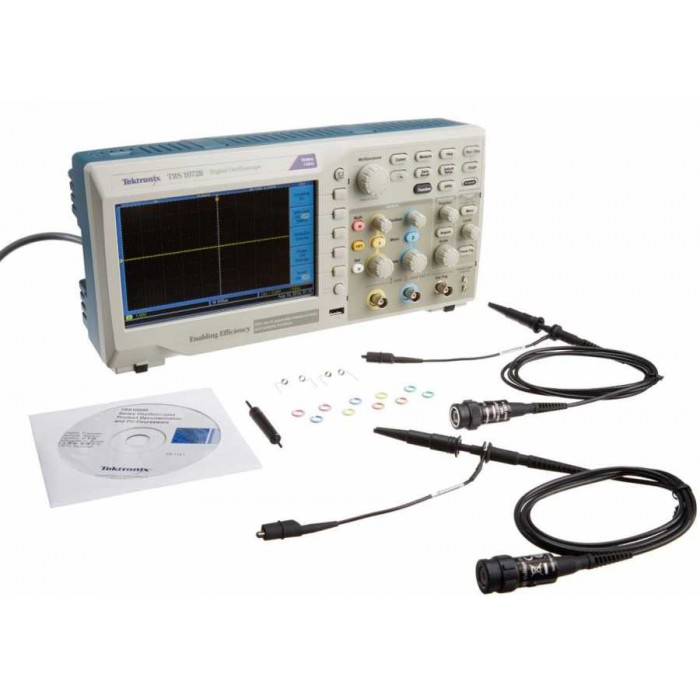

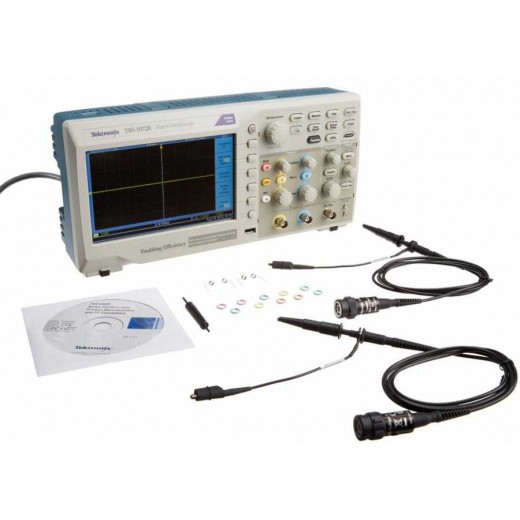

TEKTRONİX-TBS1072B (70MHz / 2 CHANNEL / 2GS/s )

TEKTRONİX-TBS1072B (70MHz / 2 CHANNEL / 2GS/s ) info

Product Features:

• 70 MHz bandwidth
• 2-channel
• Up to 1 GS/s sample rate on all channels
• 2.5k point record length on all channels
• Advanced triggers including pulse and line-selectable video triggers
• 34 automated measurements
• Dual window FFT, simultaneously monitors both the time and frequency domains
• Built-in waveform limit and trend plot testing
• Dual channel frequency counter
• Zoom Function
• Automated, extended data logging feature
• Autoset and auto-ranging functions
• Built-in context-sensitive help
• Multiple-language user interface
• 7 inch WVGA (800X480) Active TFT Color Display
• Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb.(2 kg)
• 5-year warranty

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage
• USB 2.0 device port on rear panel for easy connection to a PC
