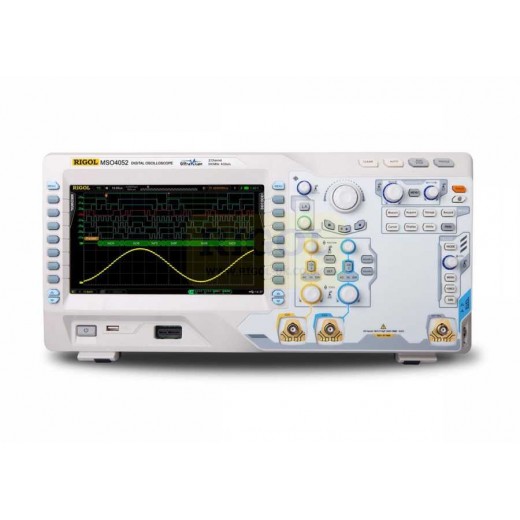

Rigol Osiloskop MSO4052

General InformationRigol MSO4052Error Dimensions8 "(20.32 cm) WVGA Color LCDError Resolution 800 × 480 Pixel Connection Ports and Interfaces
2 USB-host ports for USB Memories
USB device port for connecting PC Connection or USB Pic Bridge type printer
LXI-compliant LAN port for network connection
General purpose IEEE-488 GBIP connection with optional USB-GPIB converter.
Trigger and calibrated output
10MHz Reference Clock Input and Output port
VGA interface allows projection external monitor to be connected
Dimensions (W × H × D) cm44 × 21.8 × 13cm Weight4.8 kgSupported Operating SystemsWindows XP (32Bit + 64Bit)
Windows Vista (32Bit + 64Bit)
Windows 7 (32Bit + 64Bit)

Oscilloscope FeaturesRigol MSO4052Body Count2Real Timing Sampling Rate4 GSa / s (Single Channel In Use)
2 GSa / s Bandwidth 500 MHzOpening Modes Normal, Averge and Top Intuition Math FunctionDefinition, FFT FFT windowsDivitrogen, Hanning, Hamming, BlackmanSerial Bus DecodeParallel Standard, RS232 / UART (option), I²C (option), SPI (Option), CAN (option), Flexray (optional)

Signal Specifications (Horizontal) Rigol MSO4052GeneralCAT I 300 Vrms, CAT II 100 VrmsMax.Real-Timed Sampling Rate 4 GSa / sZaman Base Rate Between 1ns / div and 1000s / divHack DepthMax. 140Mpts. (When a channel is in use)
Max. 70Mpts. (Depth of memory per channel)

Amplitude Characteristics (Vertical) Rigol MSO4052Analog Digital Converter (A / D) Simultaneous sampling with 8 bit resolution in both channels Sensitivity Range (V / div) 5V / div with 1mV / divOffset Range 1mV / div to 5V /

Triggering FeaturesRigol MSO4052EntryingChannel, External (EXT) and EXT / 5Video Trigger ModesPAL, NTSC, SECAM
480P, 576P, 720P, 1080P, and 1080i HDTV StandardsTesting FunctionsConstruction, Pulse, Tilt, Video, Pattern, RS232 / UART, I²C, CAN, USB, FlexRay

Measuring FeaturesRigol MSO4052Cursor MeasurementsManual, tracking and auto measurement modes Automatic MeasuresVpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1-2 (rise), Delay 1-2 (fall), Phase 1-2 (rise), Pha


Lojika Analyzer FeaturesRigol MSO4052Local Number of Channels 16Sample Rate Ratio. 1 GSa / s (Real Time) Memory Depth Max. 28Mpts Logic levels TTL (1.4V)
5.0 V CMOS (2.5 V)
3.3 V CMOS (1.65 V)
2.5 V CMOS (1.25 V)
1.8 V CMOS (0.9 V)
ECL (-1,3 V)
PECL (1.2 V)
LVDS (1.2 V)
0 V
User definedDikey Resolution1 BitSignal Decoding Parallel (standard), RS232 / UART (optional),
I²C / SPI (optional), CAN (optional), FlexRay (optional)
