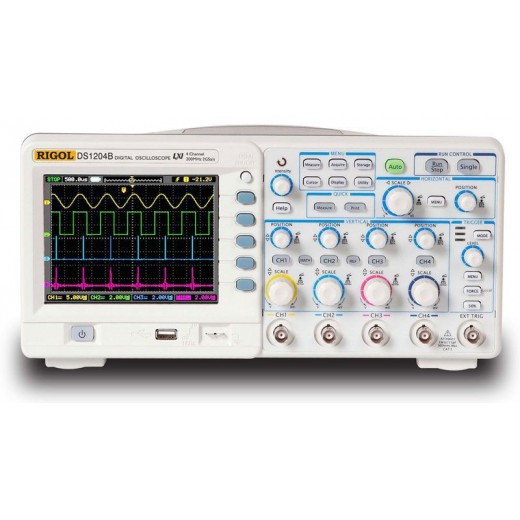

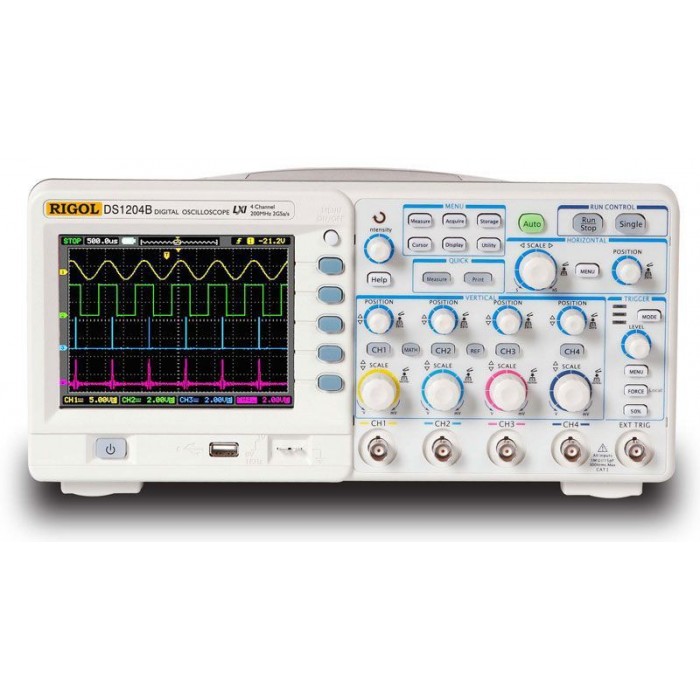

Rigol Osiloskop DS1204B

Rigol Osiloskop DS1204B info

MeasurementsDS1000
Automatic or manual measurement
The DS1000E series provides 20 different wave parameters for automatic measurement. These 20 parameters are 10 voltage and 10 time parameters. In manual measurement mode, you can easily measure by moving the cursor. In addition, there are 3 different optional cursors available: Manual, Track, Auto.

Triggersensitivityds1000
Adjustable Trigger Sensitivity
Rigol oscilloscopes offer noise filtering to avoid false positives.

Alternativetriggerds1000
Alternative Trigger
It offers two different time zones as real.

Slopetriggerds1000
Slope Tetris
The user can arbitrarily set the rising / falling times on the signal trigger.

Risingandfallingedgeds1000
Ascent / Falling Peak Tetris
Generally, it allows you to see eye diagrams that are only found on the device.

Passfailtestds1000
Pass / Fail Test
The Pass / Fail function monitors for changes in the previously entered signal to determine if they exceed the limits. If the system's audible alert is turned on, it will not only be monitored, but will also alert if necessary.

Fastfouriertransformds1000
Fast Fourier Transform (FFT)
This function provides the user with standard spectrum analysis. Supported FFT's: Rectangle, Hanning, Hamming, Blackman.

FilesystemDS1000
File system and USB Stick support
The device features an easy-to-use file interface, USB flash disk and local memory support.

Pictbridge
Printer Support (PictBridge Certified)
You can easily connect the printer to Rigol oscilloscopes via the USB port, and you can print out your measurement results.
