Pulse Sensor Amped info

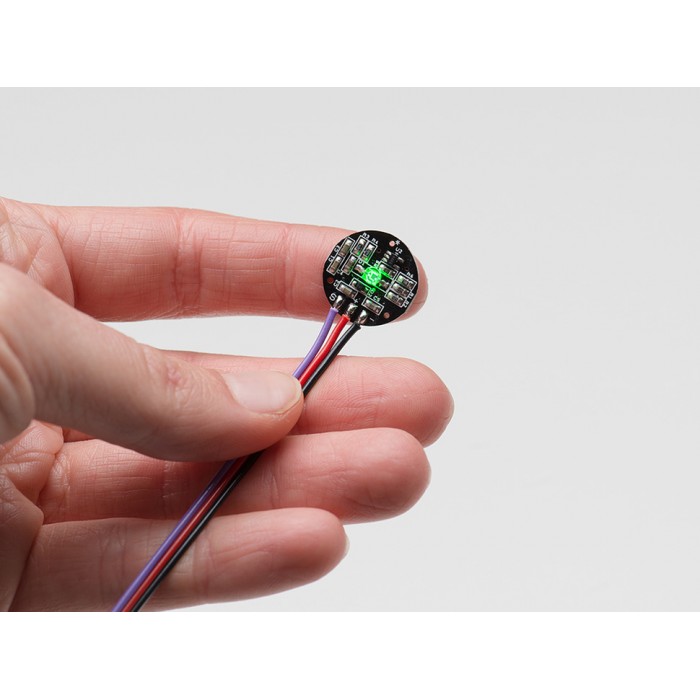

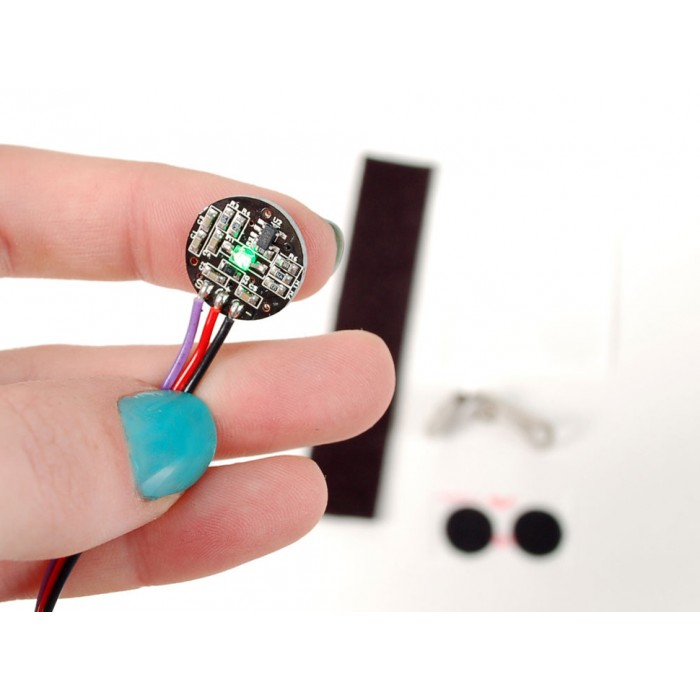

Pulse Sensor Amped is a greatly improved version of the original Pulse Sensor, a plug-and-play heart-rate sensor for Arduino and Arduino compatibles. It can be used by students, artists, athletes, makers, and game & mobile developers who want to easily incorporate live heart-rate data into their projects.
Pulse Sensor Amped adds amplification and noise cancellation circuitry to the hardware. It's noticeably faster and easier to get reliable pulse readings. Pulse Sensor Amped works with either a 3V or 5V Arduino.

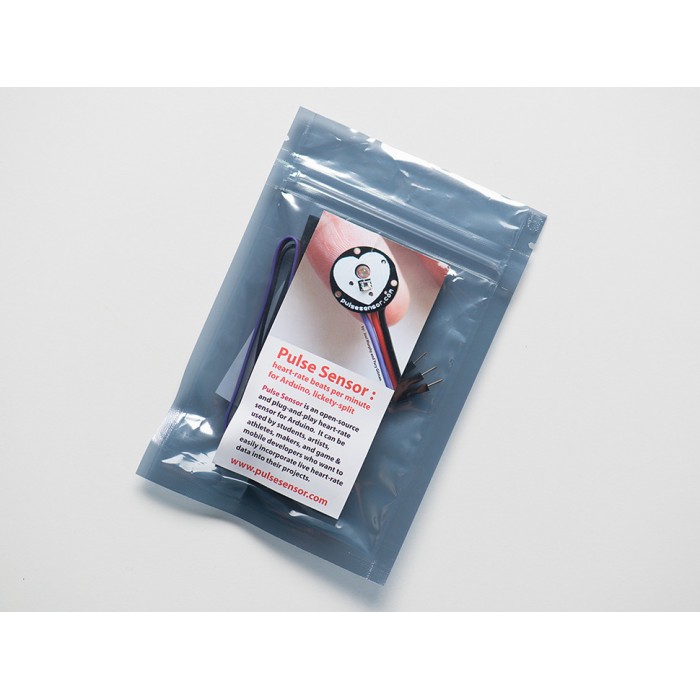

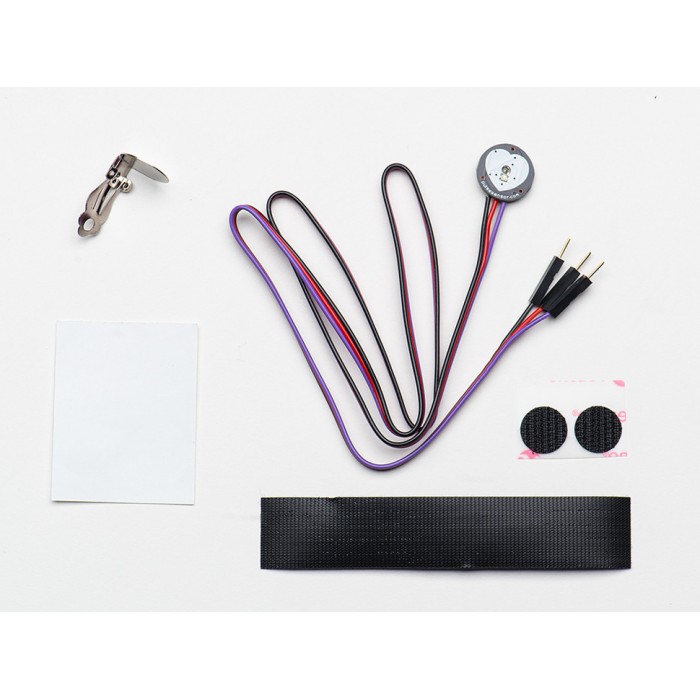

The kit includes:
- A 24-inch Color-Coded Cable, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required.
- An Ear Clip, perfectly sized to the sensor. It can be hot-glued or epoxied to the back of the sensor to get reading from an ear lobe.
- Parts to make a handy Velcro finger strap. This is another great way to get heart-rate data.
- 4 Transparent Stickers, to insulate the front of the Pulse Sensor from oily fingers and sweaty earlobes.
- Visualization software (made in Processing) to instantly see output of the sensor and for troubleshooting.
Pulse Sensor Amped - General Specifications
- Plug-and-play amped pulse sensor
- Amplification and noise cancellation
- Additional clips to measure at finger and ear
- Arduino compatible
Pulse Sensor Amped - Technical Specifications
The kit includes:
- A 24-inch Color-Coded Cable, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required.
- An Ear Clip, perfectly sized to the sensor. It can be hot-glued or epoxied to the back of the sensor to get reading from an ear lobe.
- Parts to make a handy Velcro finger strap. This is another great way to get heart-rate data.
- 4 Transparent Stickers, to insulate the front of the Pulse Sensor from oily fingers and sweaty earlobes.
- The Pulse Sensor has 3 holes around the outside edge which make it easy to sew it into almost anything.
- Visualization software (made in Processing) to instantly see output of the sensor and for troubleshooting.
Videos
Documents
Getting Started Guide PDF
Pulse Sensor Amped Arduino Code 1.1
Pulse Sensor Amped Processing Code 1.1
Pulse Sensor Amped 1.1 Code Walk-through:
http://pulsesensor.com/pages/pulse-sensor-amped-arduino-v1dot1
References
Adafruit Web Site:
https://www.adafruit.com/products/1093
