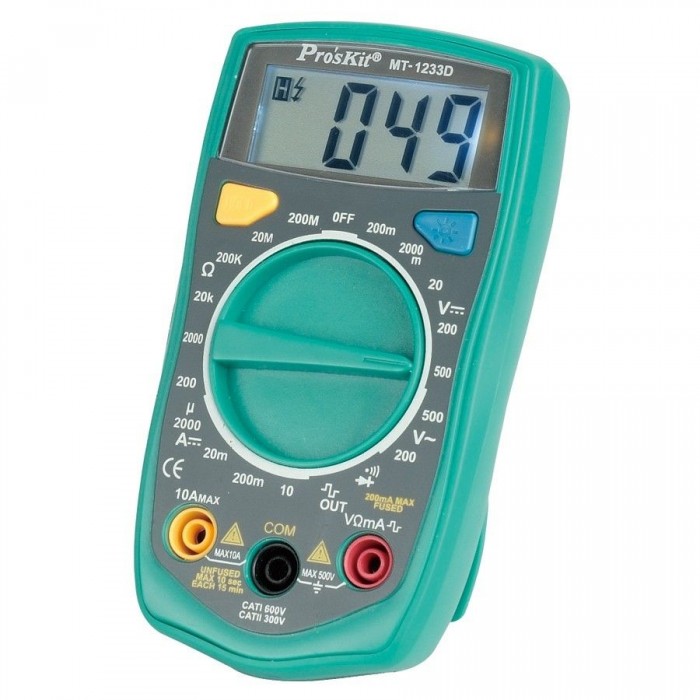

Proskit MT-1233D 3 1/2 Dijital Multimeter

Proskit MT-1233D 3 1/2 Dijital Multimeter info

The Proskit MT-1233D is a practical digital multimeter with easy-to-read LCD display, continuous performance and high reliability.
DC and AC Voltage, AC current, resistance, square signal output, Diode and continuity measurement functions. With its basic features such as high measurement accuracy, comfortable reading with a lighted LCD screen, it is an ideal device for students, home use, basic maintenance and repair work.

GENERAL FEATURES:
Maximum voltage between terminal and ground: 1000 V
Measurement time: 2-3 / sec.
Measurement out of range alarm: '1' appears.
Automatic negative polarity detection
Working Temperature: 0 ℃ ~ 40 ℃, (Relative Humidity: 0-75%)
Storage Temperature: -10 ℃ ~ 50 ℃, (Relative Humidity: 0-75%)
Power: 1.5V battery AAAx2
Dimensions: 130 (u) * 72 (g) * 28 (y) mm
Approximate Weight: 130g (excluding battery

TECHNICIAL SPECIFICATIONS

DC Voltage
200m / 2000m / 20 / 200V ± (0.8% + 3d),
500 V ± (1.0% + 3d)
AC Voltage
200 / 500V ± (1.2% + 5d)
DC Current
2000u / 20m / 200mA ± (1.2% + 5d), 10A ± (2.5% + 5d)
Resistance
200Ω ± (1.5% + 5d), 2000 / 20k / 200kΩ ± (1.0% + 3d)
20MΩ ± (1.0% + 5d), 200MΩ ± (1.0% (rdg-10) + 10d)
Square Signal Output
50 Hz (5 Vp-p, 50 K)
Continuity Test
Yeah
Diode Test
Yeah
EN61010-1
CE / CAT I 600V, CATII 300V
