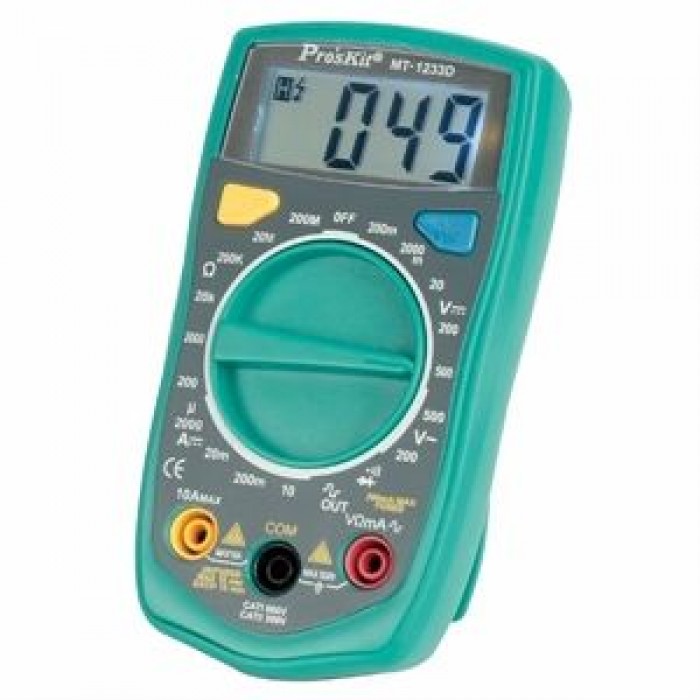

The Proskit MT-1233D is a practical digital multimeter with easy-to-read LCD display, continuous performance and high reliability.
DC and AC Voltage, AC current, resistance, square signal output, Diode and continuity measurement functions. With its basic features such as high measurement accuracy, comfortable reading with a lighted LCD screen, it is ideal for students, home use, basic maintenance and repair work.
GENERAL FEATURES:
Maximum voltage between terminal and ground: 1000V
Measurement time: 2-3 / sec.
Measurement out of range alarm: '1' appears.
Automatic negative polarity detection
Working Temperature: 0 ℃ ~ 40 ℃, (Relative Humidity: 0-75%)
Storage Temperature: -10 ℃ ~ 50 ℃, (Relative Humidity: 0-75%)
Power: 1.5V battery AAAx2
Dimensions: 130 (u) * 72 (g) * 28 (y) mm
Approximate Weight: 130g (excluding battery)
TECHNICIAL SPECIFICATIONS
DC voltage 200m / 2000m / 20 / 200V ± (0.8% + 3d),
500 V ± (1.0% + 3d)
AC Voltage 200 / 500V ± (1.2% + 5d)
DC Current 2000u / 20m / 200mA ± (1.2% + 5d), 10A ± (2.5% + 5d)
Resistance 200Ω ± (1.5% + 5d), 2000 / 20k / 200kΩ ± (1.0% + 3d)
20MΩ ± (1.0% + 5d), 200MΩ ± (1.0% (rdg-10) + 10d)
Square Signal Output 50Hz (5 Vp-p, 50KΩ)
Continuity Test Yes
Diode Test Yes
EN61010-1 CE / CAT I 600V, CATII 300V
