Pololu 22T Track Set

Pololu 22T Track Set info

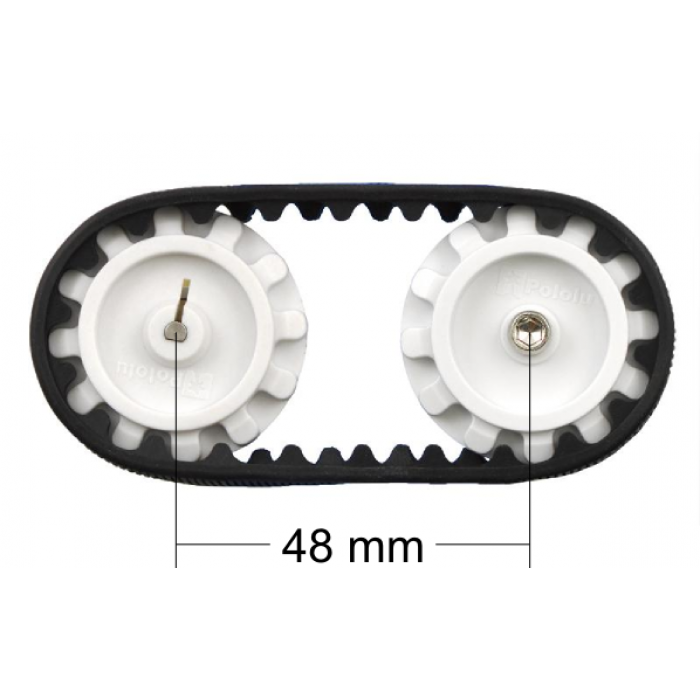

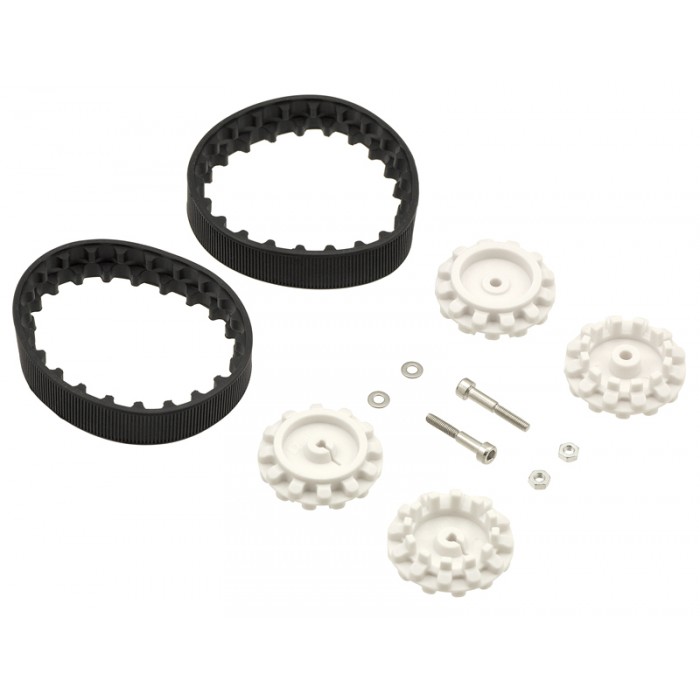

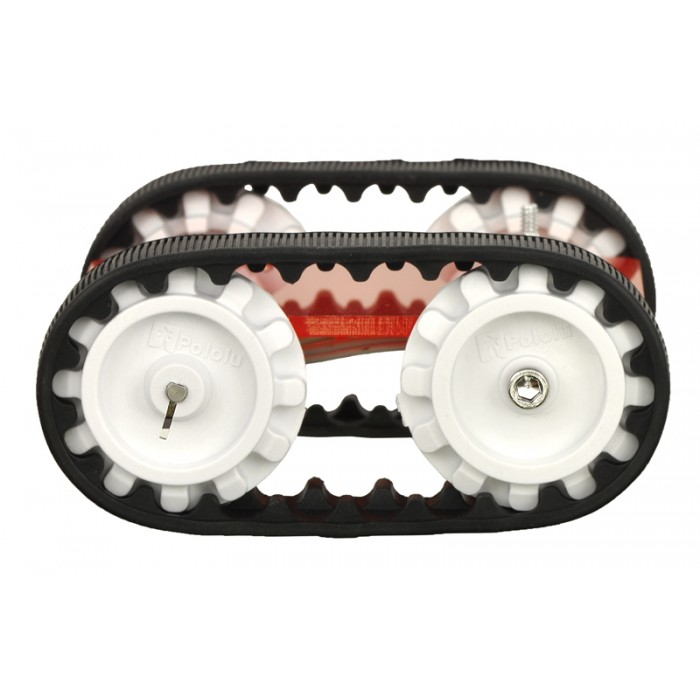

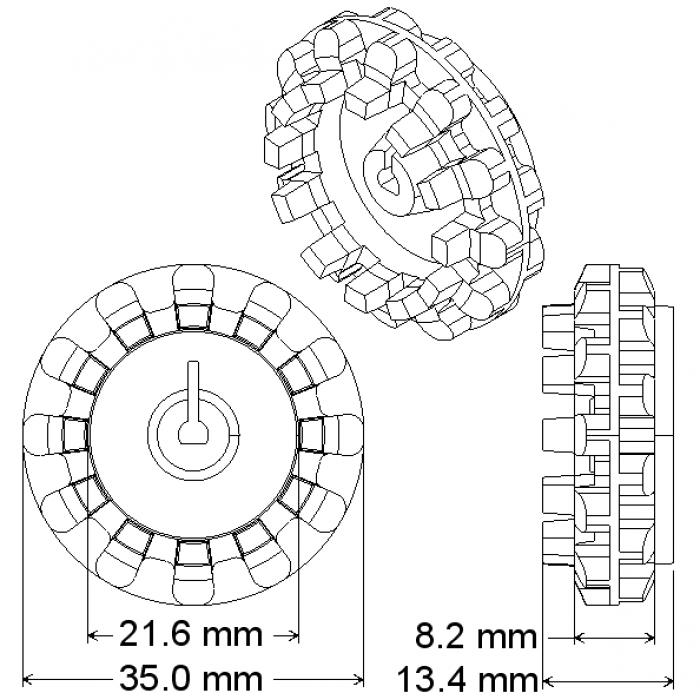

Pololu 22T Track Set includes a pair of 22-tooth silicone tracks, two drive sprockets measuring 1.38" (35 mm) in diameter, and two matching idler sprockets along with mounting hardware. The drive sprockets are designed to work with 3mm D-shafts.

Pololu 22T Track Set - General Specifications

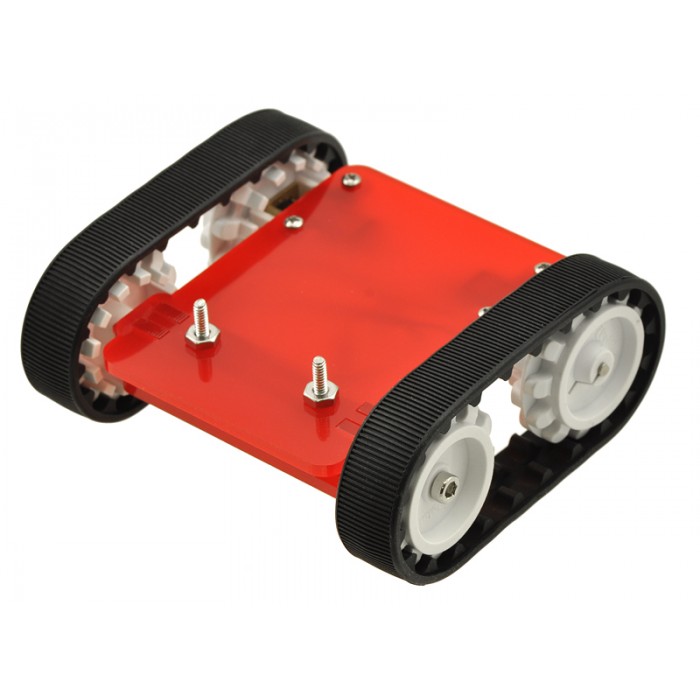

• Great for adding a tracked drive system to a small robot or vehicle
• Two silicone tracks
• Two drive sprockets
• Two idler sprockets

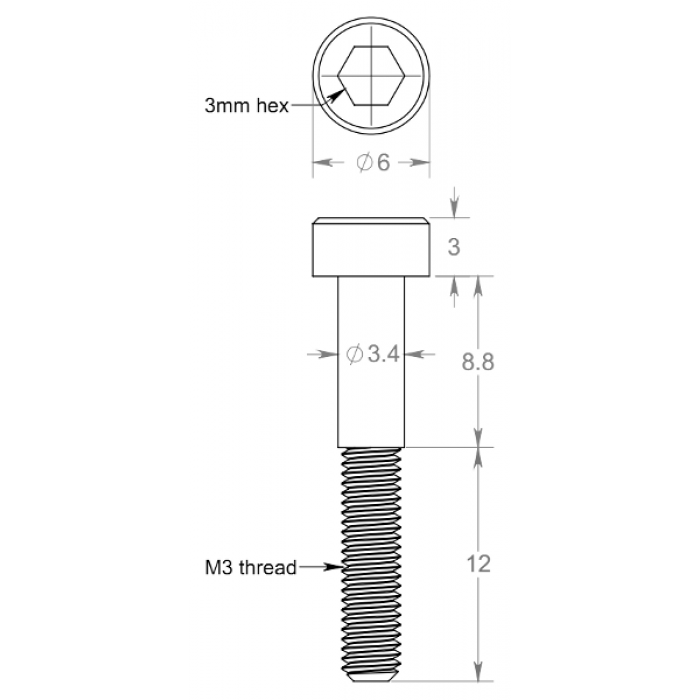

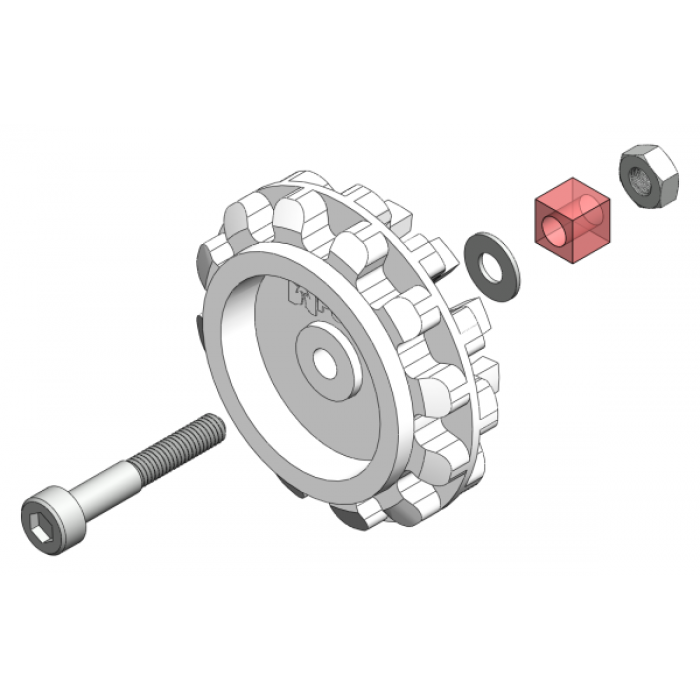

• Two shoulder bolts, washers and M3 nuts

Pololu 22T Track Set - Technical Specifications

Videos

Documents

References

Pololu Web Site: https://www.pololu.com/product/1415
