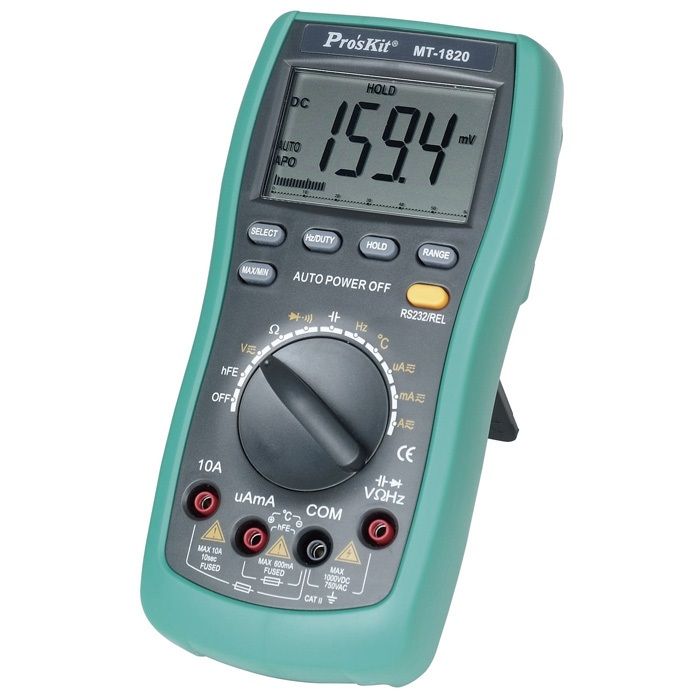

PROSKIT MT-1820 3 5/6 DIGITAL MULTIMETER (DUAL SCREEN - USB)

Click Image for Gallery
0 reviews  (0/5 ) 0 reviews  •  Write a review
Add to Wish List Add to Compare
Product Code: 81867
Availability: SOLD OUT Views: 4732
Digital Multimeter |
$76.03
Qty:

Shipping Options to United States

Select Country:
* Region / State:

PROSKIT MT-1820 3 5/6 DIGITAL MULTIMETER (DUAL SCREEN - USB) info

MT-1820 Driver


Counter
5999
        Digits
3 5/6
        Panel size
70×50mm, 33mm high figure
        Backlight
Y
        Analog bargraph
Y
        Auto/Manual ranging
Both
        DC (V)
600mV/6V/60V/600V ±(0.5%+4d)

1000V ±(1.0%+6d)

***
        AC(V)
6/60/600V ±(0.8%+10d)

750V ±(1.0%+10d)
        DC(A)
600μA/6000μA ±(1.0%+10d)

60/600mA ±(1.0%+10d)

6A/10A ±(1.2%+10d)
        AC(A)
600μA/6000μA ±(1.5%+10d)

60/600mA ±(1.5%+10d)

6A/10A ±(2.0%+15d)
        Resistance(Ω)
600Ω ±(0.8%+5d)

6/60/600K/6MΩ ±(0.8%+4d)

60MΩ ±(1.2%+10d)

***
        Frequency(Hz)
100/1000Hz ±(0.5%+4d)

10K/100KHz ±(0.5%+4d)

1M/20MHz ±(0.5%+4d)
        Capacitance(μF)
40nF±(5%+30d)

400nF/4μF/40μF±(3.5%+8d)

200μF±(5.0%+10d)
        Temperature(C)

(-20C~400C) ±1.0+50d


(400C~1000C) ±1.5+15d
        Temperature (F)
(0F~750F) ±(1.0+5d)

(750F~1832F) ±(1.5+5d)
       Continuity with beeper
Y
        Diode test
Y
        Transistor test
Y
        Display hold
Y
        USB/RS232 interface
USB
        Automatic power off
Y
       Low battery indication
Y
        EN61010-1 CAT IV
600V/1000VDC/750VAC
        Bettery
1.5V AAA×2
        Size (D×W×H)mm
185×91×49
        Weight (g)
390g
        Individual Packing
Color box
