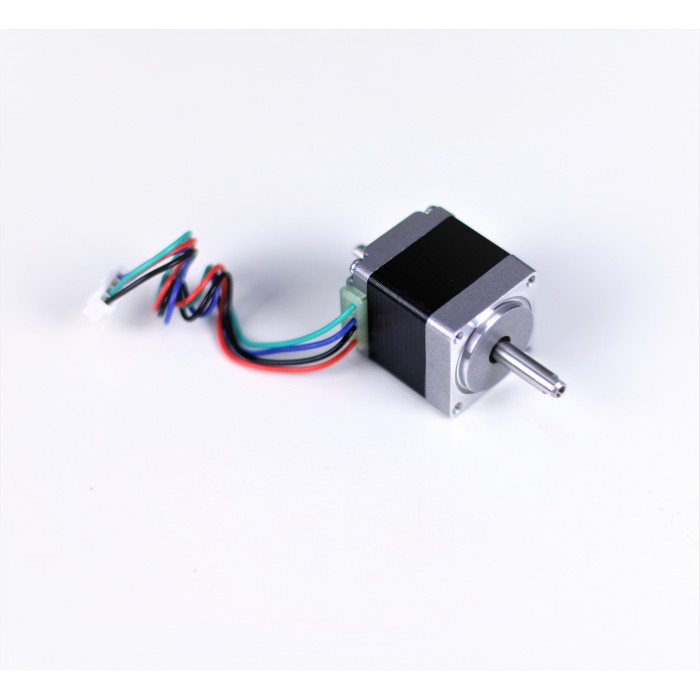

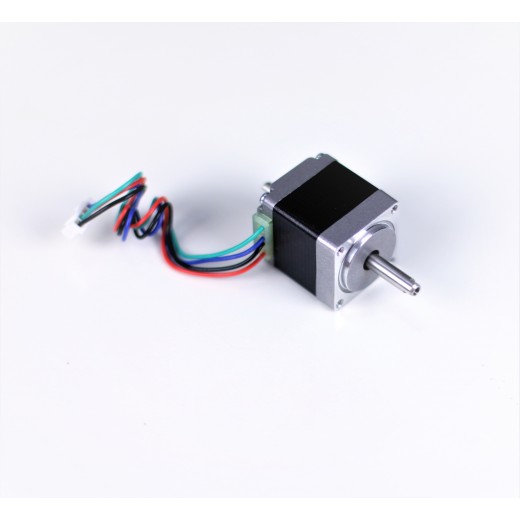

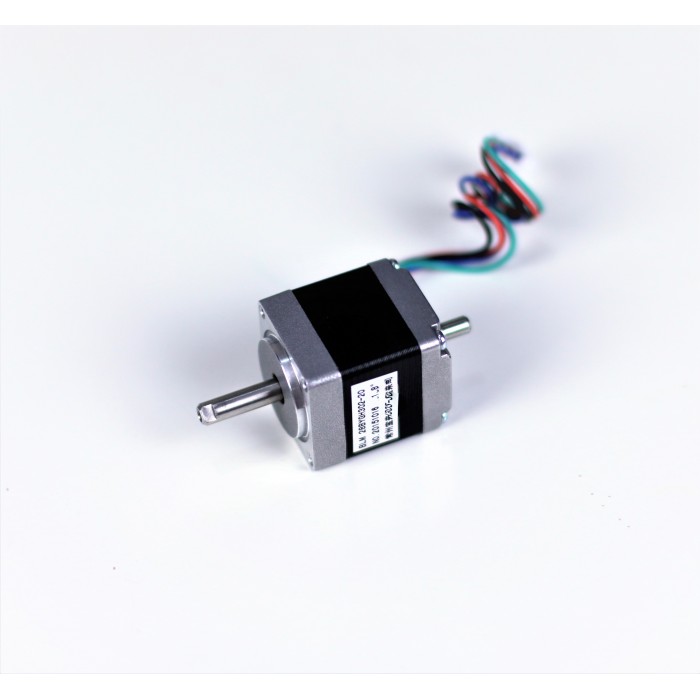

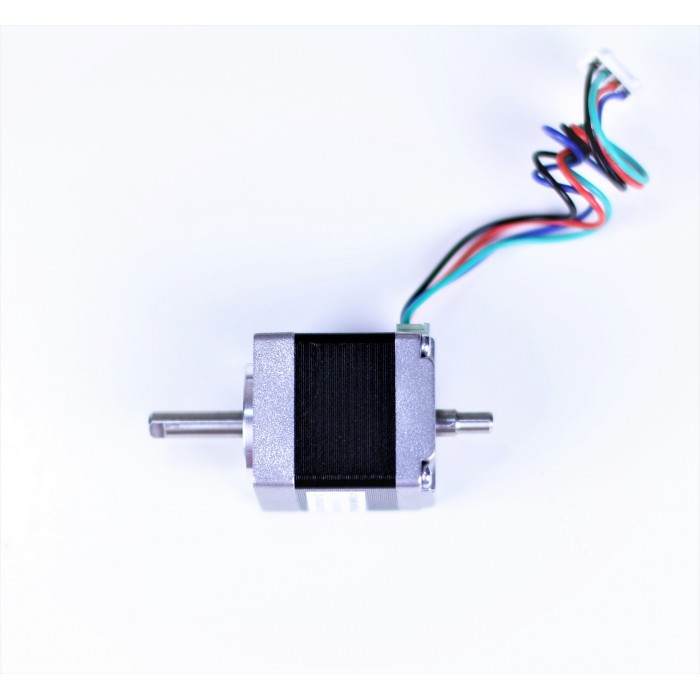

NEMA 11 28mm Hybird Stepping Motor

Click Image for Gallery
0 reviews  (0/5 ) 0 reviews  •  Write a review
Add to Wish List Add to Compare
Product Code: 93292
Availability: SOLD OUT Views: 6302
Stepper Motor | Nema 11 Stepper Motor |
$13.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

NEMA 11 28mm Hybird Stepping Motor info

NEMA11 28mm Hybird Stepping Motor - 28BYGH302

Specifications:

Voltage: 5.25V
Current: 0.35A
Resistance: 15Ω
Inductance: 9.2mH
Step Angle: 1.8 deg
Holding torque: 0.6kg.cm

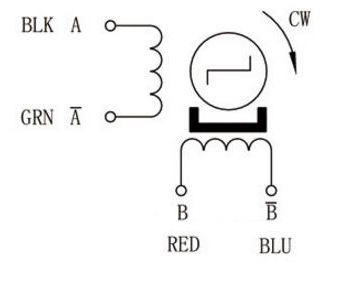

Wiring Diagram:

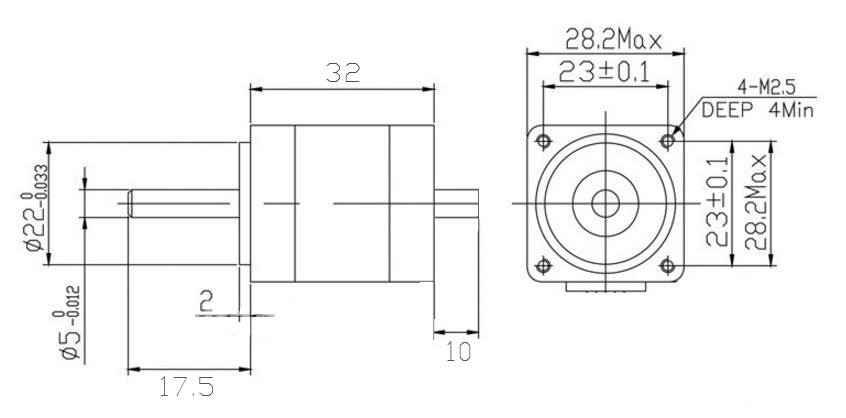

Figure Dimensions (unit =mm):
