Miniature 0.8" 8x8 Pure Green LED Matrix - KWM-20882CPGB

Miniature 0.8" 8x8 Pure Green LED Matrix - KWM-20882CPGB info

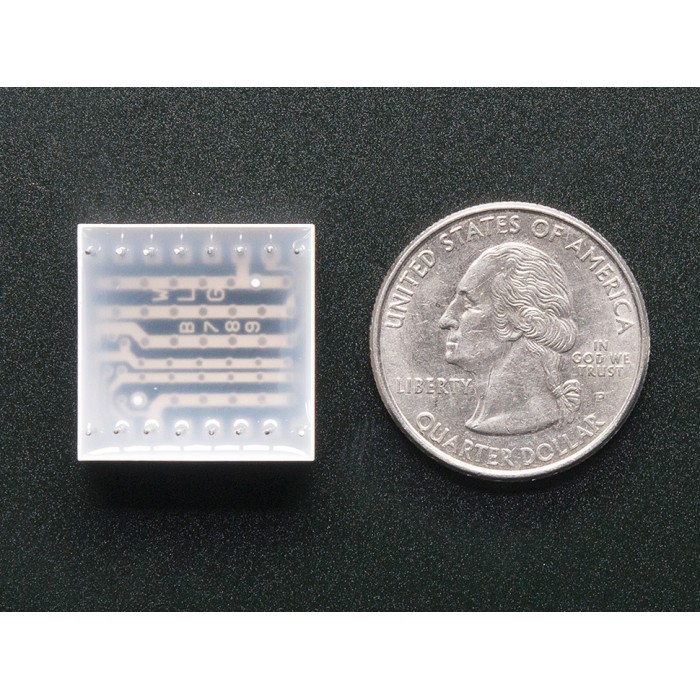

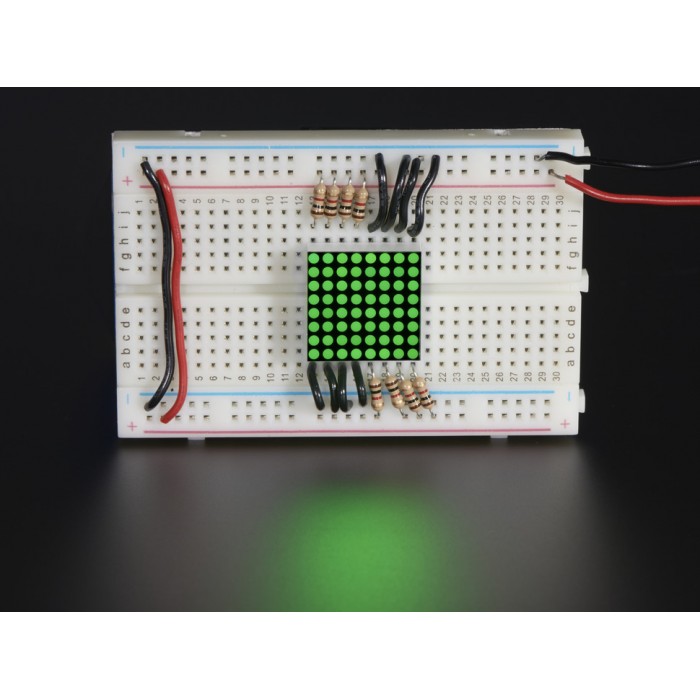

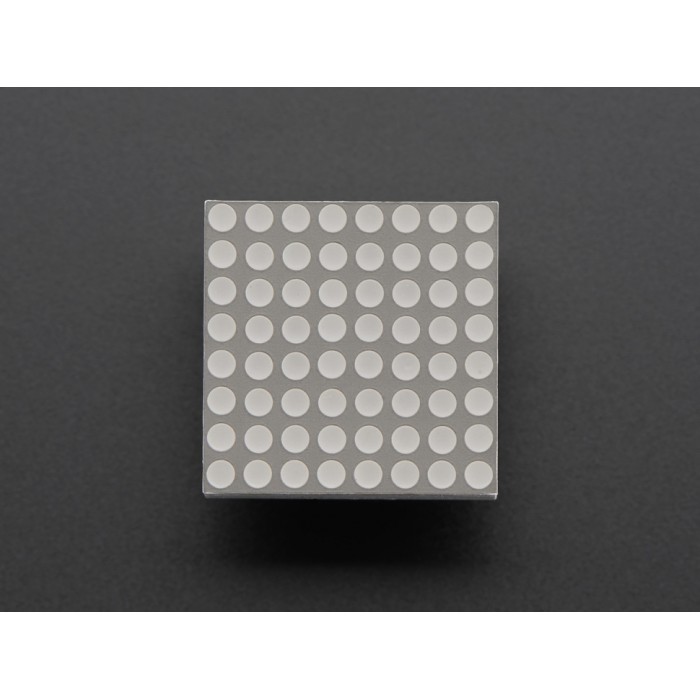

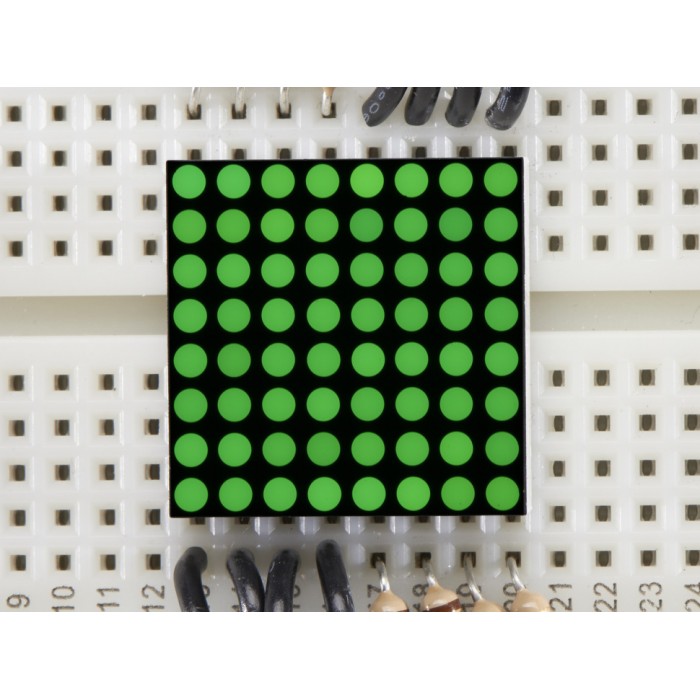

Miniature 0.8" 8x8 Pure Green LED Matrix - KWM-20882CPGB has everything that a big LED matrix has, but it is smaller than standard LED matrices. The matrix has 64 pure green LEDs which are contained in a plastic body. The LEDs are ordered in an 8x8 matrix. The LED matrix has 16 pins on the side which are spaced 0.1”, so the matrix can be used on a breadboard.

This LED matrix is common cathode. Since the display is in a grid, a multiplexer should be used to control it. The link to Arduino playground tutorial using MAX7219 can be found in Documents section.

Miniature 0.8" 8x8 Pure Green LED Matrix - KWM-20882CPGB - General Specifications

• Miniature LED matrix
• 64 LEDs, ordered in an 8x8 matrix
• Common cathode
• Pure green color

Miniature 0.8" 8x8 Pure Green LED Matrix - KWM-20882CPGB - Technical Specifications

• Dimensions: 20mm / 0.8" x 20mm / 0.8" x 6mm / 0.23"
• Pin Length: 13.35mm / 0.5"
• Weight: 3g

Videos

Documents

Arduino Playground Link: http://playground.arduino.cc/Main/LEDMatrix

Datasheet

References

Adafruit Product Page: https://www.adafruit.com/products/1624
