Me Step Motor Sürücüsü v1.0 A4988 tabanlı kullanımı kolay bir sürücü kartıdır. Genelde bipolar step motarların hassas olarak sürülmesi amacıyla kullanılır. 3D yazıcılar, CNC'ler, Makeblock Müzik Robotu'nun yanısıra hassas hareket yeteneğinin gerektiği başka uygulamalarda da kullanılabilir.

A4988 kolay kullanım için dahili çeviriciye sahip komple bir mikro adımlı step motor sürücüsüdür.

Bipolar step motorları tam, yarım, çeyrek, sekizde bir ve on altıda bir adım modlarında sürmek için tasarlanmıştır. Ayrıca kart üzerinde bir DIP anahtar sırası ve potansiyometre bulunmaktadır. Bu sayede motorun adım modlarını ve hızını kolayca değiştirebilirsiniz.

Özellikler:

• A4988 step motor sürücü entegresi
• 4 kablolu bi-polar step motorlarla uyumludur
• A potentiometer to control the current of the stepper motor
• A on-board DIP Switch(2 POS SIDE ACTUATED) support full, half, quarter, eighth, and sixteenth-step modes
• A buildin fuse protects board and chip from over current or any shortage by any reasons
• A on board heat sink helping  heat dissipation allows driver chip current up to 1.35A

easy  to use

• Comes with Arduino library for easy programing
• A power indicator
• Easy wiring with 6 Pin RJ25 interface
• Labeled with red tag and compatible with Me BaseBoard
• 2.54mm breakout pins for connecting with jumper wires
• 16mm interval M4 mounting holes, compatible with Makeblock beams

Specification:

• Max current: ±1.35A
• Max motor drive voltage: 25V

  Note: Me BaseBoard max supply  voltage 12V

• Logic voltage: 5V
• Dimensions: 48mm*24mm(Length × Width)

Part List:

1 x Me Stepper Motor Driver V1.0

1 x HT3.96-4P

1 x heat sink

Description:

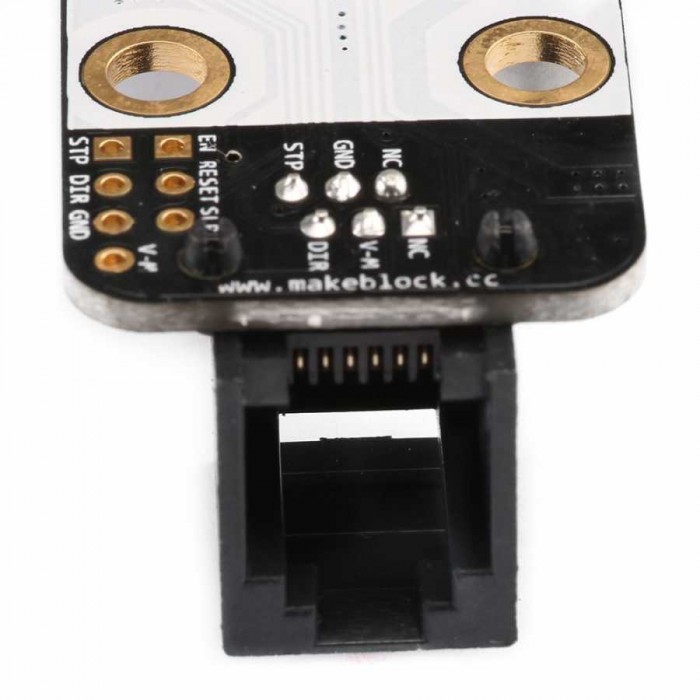

The Me Stepper Driver V1.0 is a easy to use stepper motor driver board based on chip A4988, generally used to drive bipolar stepper motors precisely. It is perfect for 3D printing, CNC, Makeblock Music Robot as well as a lot of other applications where it's necessary to control precise movement.

The A4988 is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes. Plus, we add a on-board DIP Switch and a on-board potentimeter, so you can change step modes and the current of motor easily.

Features:

• A4988 stepper driver chip
• Compatible with 4 wire bi-polar stepper motors
• A potentiometer to control the current of the stepper motor
• A on-board DIP Switch(2 POS SIDE ACTUATED) support full, half, quarter, eighth, and sixteenth-step modes
• A buildin fuse protects board and chip from over current or any shortage by any reasons
• A on board heat sink helping  heat dissipation allows driver chip current up to 1.35A

easy  to use

• Comes with Arduino library for easy programing
• A power indicator
• Easy wiring with 6 Pin RJ25 interface
• Labeled with red tag and compatible with Me BaseBoard
• 2.54mm breakout pins for connecting with jumper wires
• 16mm interval M4 mounting holes, compatible with Makeblock beams

Specification:

• Max current: ±1.35A
• Max motor drive voltage: 25V

  Note: Me BaseBoard max supply  voltage 12V

• Logic voltage: 5V
• Dimensions: 48mm*24mm(Length × Width)

Part List:

1 x Me Stepper Motor Driver V1.0

1 x HT3.96-4P

1 x heat sink
