DS1307 Real Time Clock Breakout Board Kit

DS1307 Real Time Clock Breakout Board Kit info

DS1307 Real Time Clock Breakout Board Kit is a great battery-backed real time clock (RTC) that allows your microcontroller project to keep track of time even if it is reprogrammed, or if the power is lost. DS1307 Real Time Clock Breakout Board Kit is perfect for data logging, clock-building, time stamping, timers and alarms, etc. The DS1307 is the most popular RTC, and works best with 5V-based chips such as the Arduino.

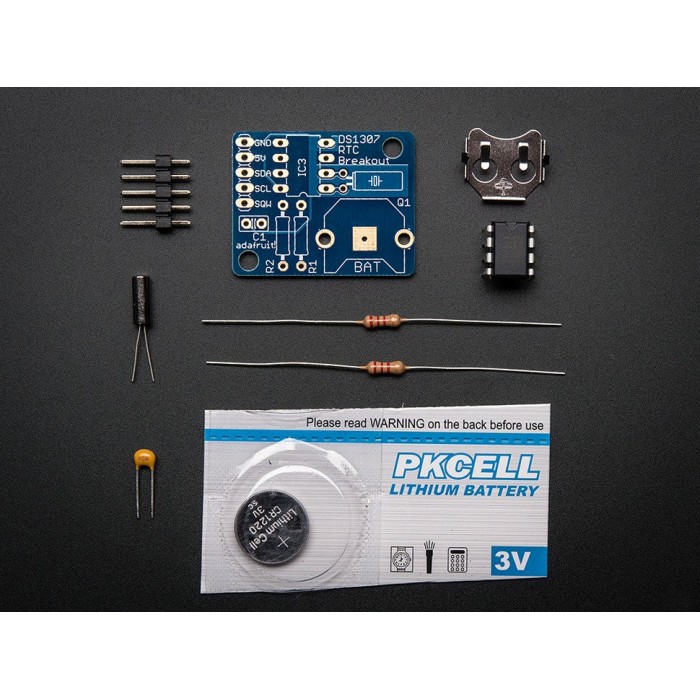

This breakout board is a kit and requires some light soldering which should only take about 15 minutes. Please check the documentation page for a list of parts and assembly instructions

DS1307 Real Time Clock Breakout Board Kit - General Specifications

• All parts including PCB, header and battery are included
• Quick to assemble and use
• Plugs into any breadboard, or you can use wires
• Example code and library for Arduino
• Two mounting holes
• Will keep time for 5 years or more

DS1307 Real Time Clock Breakout Board Kit - Technical Specifications

• Length: 24.21mm
• Width: 30.44mm
• Height: 5mm
• Weight: 4g
• Mounting Holes: 3.3mm diameter, 30mm apart
• This board/chip uses I2C 7-bit address 0x68

Documents

Sample exercises of the functions of the clock:

https://fabienroyer.wordpress.com/2011/01/03/keeping-track-of-time-on-a-netduino-using-a-maxim-ds1307-real-time-clock/

References

https://www.adafruit.com/products/264
