Adafruit MOTOR SHIELD KIT (DC Motor-Stepper-Servo) for Arduino v2.0

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91095
Availability: In Stock Views: 29361
DeliverySame Day Delivery
Product Description
  • 2 connections for 5V hobby servos connected to the Arduino's high-resolution dedicated timer
  • Can control up to 2 step motors simultaneously
  • Motors automatically disabled on power-up
  • Big terminal block connectors to easily hook up wires (18-26AWG) and power
  • Arduino reset button brought up top
  • Compatible with Arduino UNO, Leonardo, ADK/Mega R3, Due, Diecimila & Duemilanove. Works with Mega/ADK R2.
$21.00
Equivalent Products
  • $ 34.26
    Arduino Motor Shield V3 - Original - Boxed
  • Qty: Add to Cart

    Shipping Options to United States

    Select Country:
    * Region / State:

    Adafruit MOTOR SHIELD KIT (DC Motor-Stepper-Servo) for Arduino v2.0 info

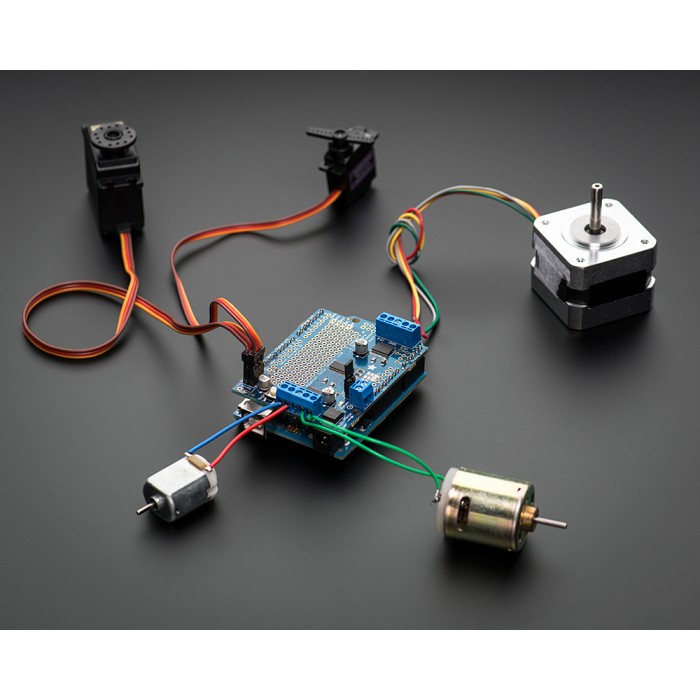

    The original Adafruit Motor Shield Kit is one of the most beloved kits, which is why Adafruit decided to make something even better. Adafruit Motor Shield Kit for Arduino v2 is upgraded to to make the best, easiest way to drive DC and Step motors. This shield will make quick work of your next robotics project! The ability to drive up to 4 DC motors or 2 step motors is kept and also many improvements are added.

    Instead of a L293D Darlington driver, the Adafruit Motor Shield Kit for Arduino v2 now has the TB6612 MOSFET driver with 1.2A per channel and 3A peak current capability. It also has much lower voltage drops across the motor so you get more torque out of your batteries.

    Instead of using a latch and the Arduino's PWM pins, the shield has a fully-dedicated PWM driver chip onboard. This chip handles all the motor and speed controls over I2C. Only two pins (SDA & SCL) are required to drive the multiple motors, and since it's I2C you can also connect any other I2C devices or shields to the same pins. This also makes it drop-in compatible with any Arduino, such as the Uno, Due, Leonardo and Mega R3.



    Adafruit Motor Shield Kit for Arduino v2 - General Specifications

    • 2 connections for 5V hobby servos connected to the Arduino's high-resolution dedicated timer
    • Can control up to 2 step motors simultaneously
    • Motors automatically disabled on power-up
    • Big terminal block connectors to easily hook up wires (18-26AWG) and power
    • Arduino reset button brought up top
    • Compatible with Arduino UNO, Leonardo, ADK/Mega R3, Due, Diecimila & Duemilanove. Works with Mega/ADK R2 and earlier with 2 wire jumpers.

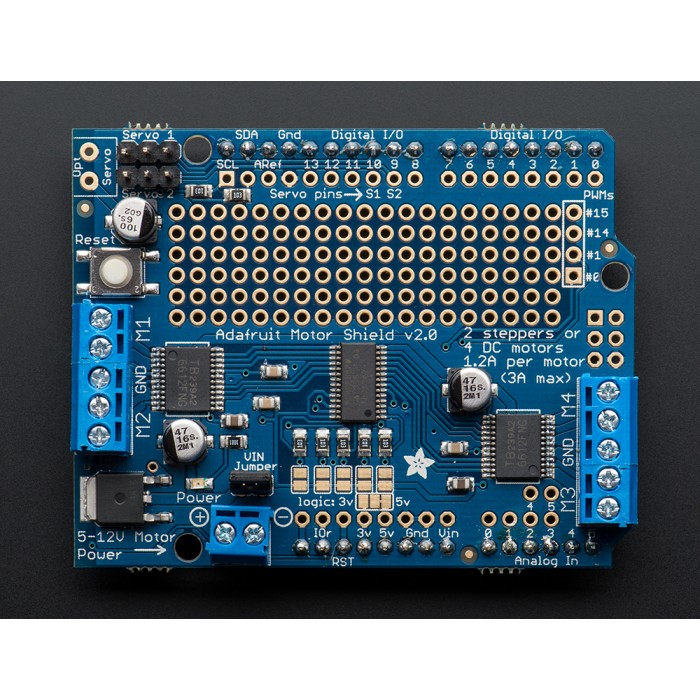

    Adafruit Motor Shield Kit for Arduino v2 - Technical Specifications

    • Dimensions, assembled: 70mm x 55mm x 10mm 2.7"x2.1"x0.4"
    • This board/chip uses I2C 7-bit addresses between 0x60-0x80, selectable with jumpers.
    • 4 H-Bridges, TB6612 chipset provides 1.2 A per bridge (3A peak)
    • Thermal shutdown protection,
    • Internal kickback protection diodes
    • Can run motors 4.5V DC to 13.5V DC
    • 0.5% DC motor speed resolution



    Videos





    Documents



    TB6612 Datasheet



    References



    Adafruit Web Site

    http://www.adafruit.com/product/1438
