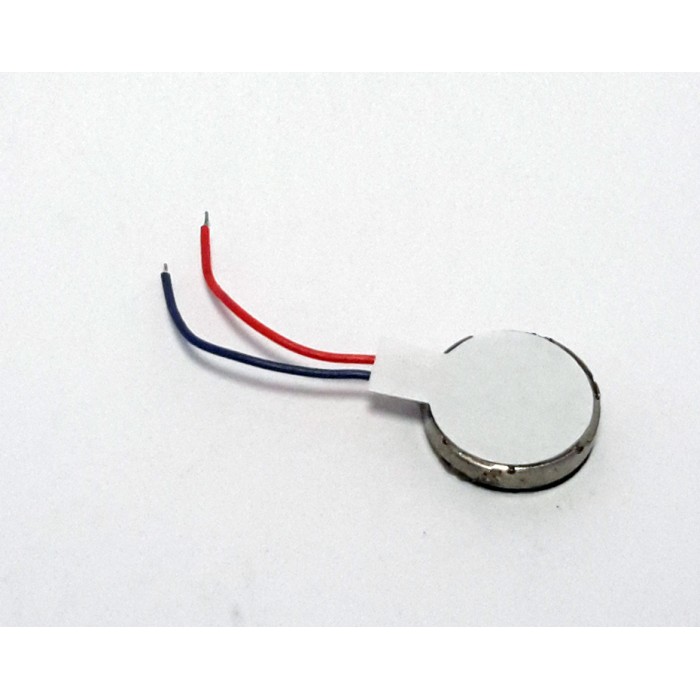

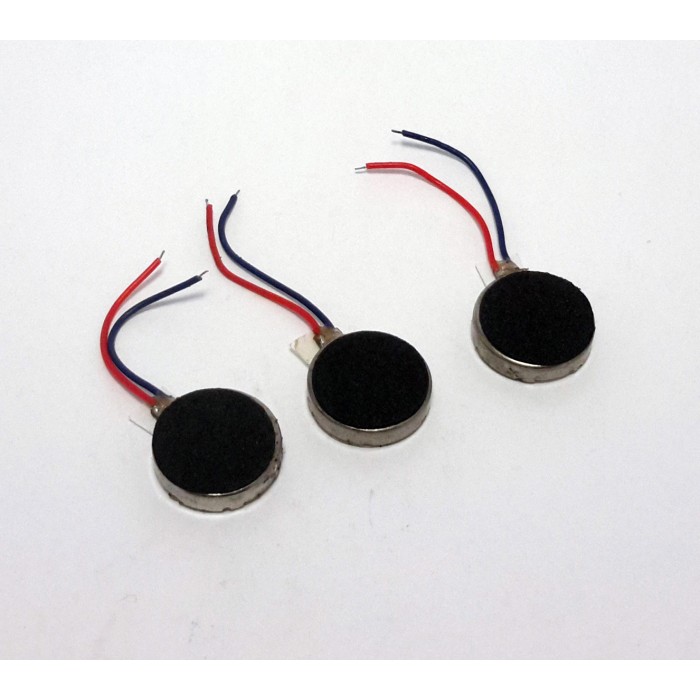

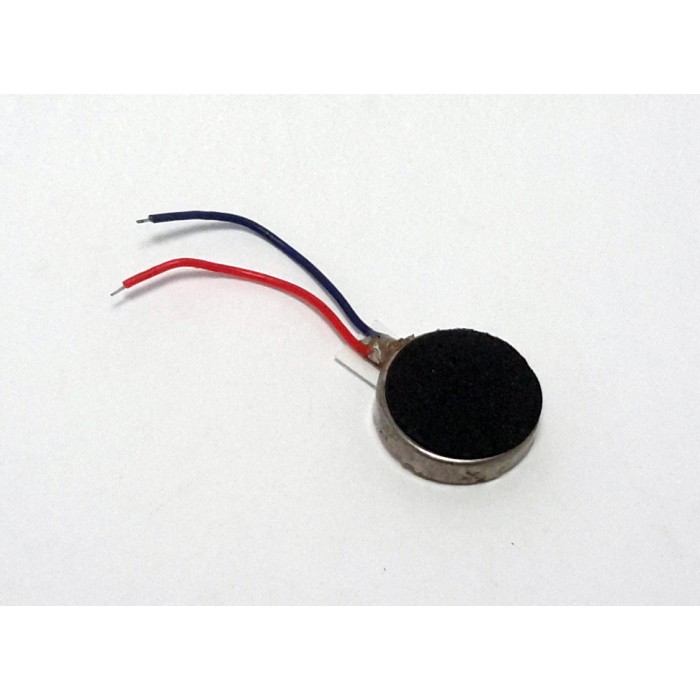

1.5-6V - 12x3mm Disk Vibration Motor

Click Image for Gallery
0 reviews  (0/5 ) 0 reviews  •  Write a review
Add to Wish List Add to Compare
Product Code: 93124
Availability: SOLD OUT Views: 18740
Electric Motor | Vibration Motor |
Product Description
  • Vibration motor without shaft
  • 60mA @3V
  • Easy mounting
$1.50
Qty:

Shipping Options to United States

Select Country:
* Region / State:

1.5-6V - 12x3mm Disk Vibration Motor info

About the Product



1.5-6V - 12x3mm Disk Vibration Motor is a small sized vibration motor without a shaft. Its dimensions are 12mm x 3mm. The motor has 60mA operating current at 3V. The amplitude of the motor is 0.75g. Because of the bidirectional bands on the back of the motor, you can mount it easily.



Product Description



  • Vibration motor without shaft
  • 60mA @3V
  • Easy mounting



Technical Specifications



  • Dimensions: 12mm x 3mm
  • Weight: 1.2g
  • Operating voltage:2.5V – 3.5V
  • Amplitude @ 3V: 0.75g
  • Speed @ 3V: 14,500rpm
  • Starting current @3V: 120mA
  • Motor resistance: 29 ± 5Ω
  • Operating temperature: -100C - +600C
