Robotic Mechanisms – ALL TYPES of GEARS 51034

All gears can be classified as either external gears or internal or annual gears:

• External Gears have teeth on the outside surface of the disk or wheel.
• Internal or Annual Gears have teeth on the inside surface of a ring or cylinder.

An external gear is one with the teeth formed on the outer surface of a cylinder or cone. Conversely, an internal gear is one with the teeth formed on the inner surface of a cylinder or cone.


ALL TYPES OF GEARS

A- SPUR GEARS: are cylindrical external gears with teeth that are cut straight across the edge of the disk or wheel parallel to the axis of rotation. The spur gears shown in Fig A. are the simplest gears. They normally translate rotating motion between two parallel shafts. An internal or annual gear, is a variation of the spur gear except that its teeth are cut on the inside of a ring or flanged wheel rather than on the outside.

Go to > Robotic Mechanisms – SPUR GEARS 51031 Page


B- INTERNAL GEARS:  usually drive or are driven by a pinion. Internal gears are spur gears turned “inside out.” In other words, the teeth are cut into the inside diameter while the outside diameter is kept smooth. This design allows for the driving pinion to rotate internal to the gear, which, in turn, allows for clean operation. Intended for light duty applications, these gears are available only in brass.

Advantages of Internal Gears

  • Reduced Sliding Action*
  • Reduced Tooth Wear

*Sliding action of one tooth over another would generate friction. Because friction increases wear and tear on the teeth, reduction of sliding action improves gear longevity.

Go to > Robotic Mechanisms – INTERNAL GEARS Page


C-RACK and PINION GEARSshown in Fig. C, convert rotary motion to linear motion; when mated together they can transform the rotation of a pinion into reciprocating motion, or vice versa. In some systems, the pinion rotates in a fixed position and engages the rack which is free to move; the combination is found in the steering mechanisms of vehicles. Alternatively, the rack is fixed while the pinion rotates as it moves up and down the rack: Funicular railways are based on this drive mechanism; the driving pinion on the rail car engages the rack positioned between the two rails and propels the car up the incline.

Pinions are small gears with a relatively small number of teeth which can be mated with rack gears.

Go to > Robotic Mechanisms – RACK and PINION Gears Page


D-BEVEL GEARS, as shown in Fig. D, have straight teeth cut into conical circumferences which mate on axes that intersect, typically at right angles between the input and output shafts. This class of gears includes the most common straight and spiral bevel gears as well as miter and hypoid gears.

Straight bevel gears are the simplest bevel gears. Their straight teeth produce instantaneous line contact when they mate. These gears provide moderate torque transmission, but they are not as smooth running or quiet as spiral bevel gears because the straight teeth engage with full-line contact. They permit medium load capacity.

Spiral bevel gears have curved oblique teeth. The spiral angle of curvature with respect to the gear axis permits substantial tooth overlap. Consequently, the teeth engage gradually and at least two teeth are in contact at the same time. These gears have lower tooth loading than straight bevel gears and they can turn up to 8 times faster. They permit high load capacity.

Miter gears are mating bevel gears with equal numbers of teeth used between rotating input and output shafts with axes that are 90° apart.

Hypoid gears are helical bevel gears used when the axes of the two shafts are perpendicular but do not intersect. They are commonly used to connect driveshafts to rear axles of automobiles, and are often incorrectly called spiral gearing.

Go to > Robotic Mechanisms – BEVEL Gears  Page


E-HELICAL GEARS:  are external cylindrical gears with their teeth cut at an angle rather than parallel to the axis. A simple helical gear, as shown in Fig. E, has teeth that are offset by an angle with respect to the axis of the shaft so that they spiral around the shaft in a helical manner. Their offset teeth make them capable of smoother and quieter action than spur gears, and they are capable of driving heavy loads because the teeth mesh at an acute angle Rather than at 90°. When helical gear axes are parallel they are called parallel helical gears, and when they are at right angles they are called helical gears. Herringbone and worm gears are based on helical gear geometry.

Go to > Robotic Mechanisms – HELICAL Gears Page


F-HERRINGBONE or DOUBLE HELICAL GEARS:  as shown in Fig. F, are helical gears with V-shaped right-hand and left-hand helix angles side by side across the face of the gear. This geometry neutralizes axial thrust from helical teeth.

Go to > Robotic Mechanisms – HERRINGBONE – DOUBLE HELICAL GEARS Page

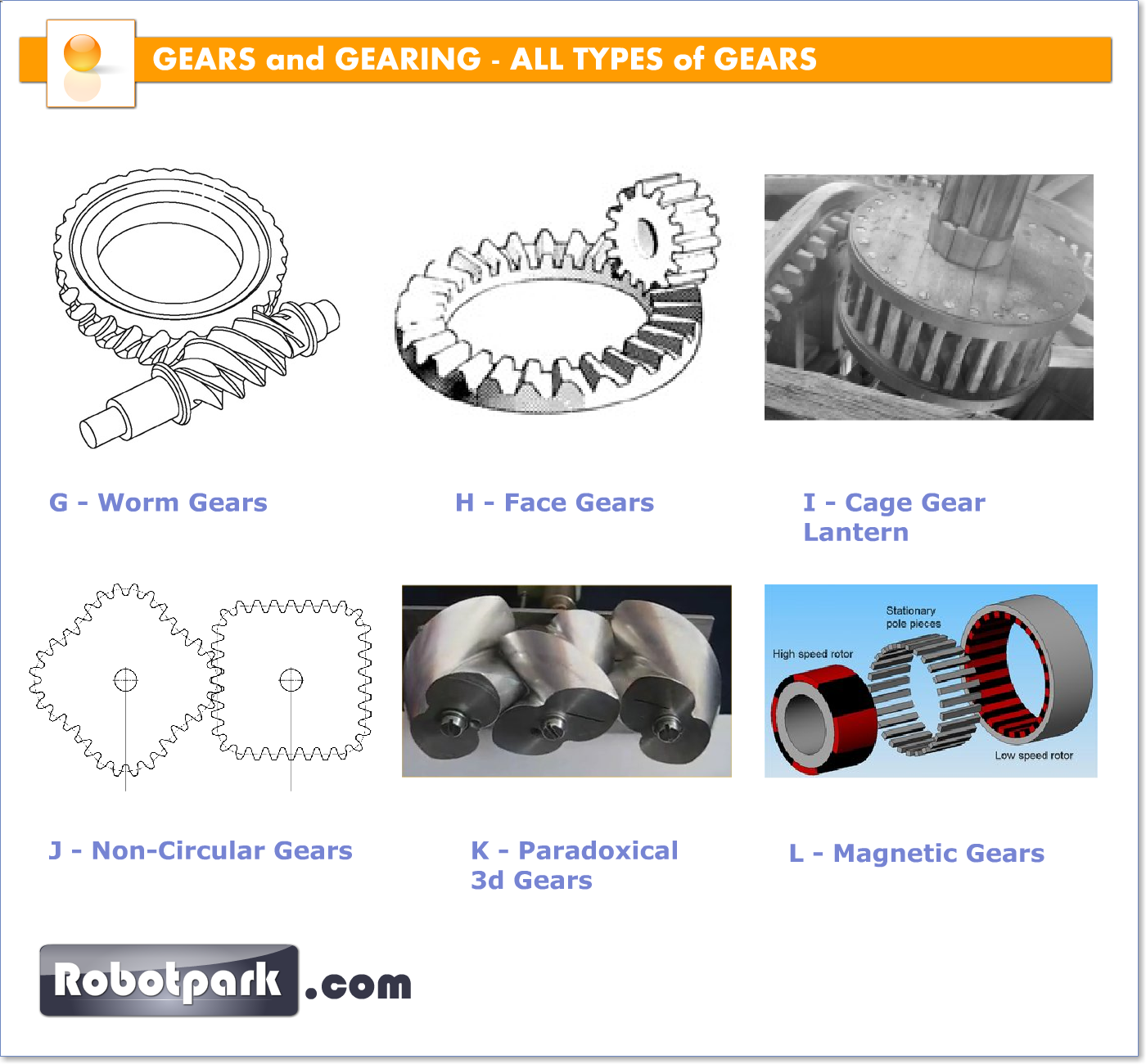

G-WORM GEARS: Worm gears, also called screw gears, are other variations of helical gearing. A worm gear has a long, thin cylindrical form with one or more continuous helical teeth that mesh with a helical gear. The teeth of the worm gear slide across the teeth of the driven gear rather than exerting a direct rolling pressure  as do the teeth of helical gears. Worm gears are widely used to transmit rotation, at significantly lower speeds, from one shaft to another at a 90° angle.

Go to > Robotic Mechanisms – WORM GEARS  Page


H-FACE GEARS: Face gears have straight tooth surfaces, but their axes lie in planes perpendicular to shaft axes. They are designed to mate with instantaneous point contact. These gears are used in rightangle drives, but they have low load capacities.

Go to > Robotic Mechanisms – FACE Gears  Page


I-CAGE GEARS: A cage gear, also called a lantern gear or lantern pinion has cylindrical rods for teeth, parallel to the axle and arranged in a circle around it, much as the bars on a round bird cage or lantern. The assembly is held together by disks at either end into which the tooth rods and axle are set. Lantern gears are more efficient than solid pinions, and dirt can fall through the rods rather than becoming trapped and increasing wear.

Go to > Robotic Mechanisms – CAGE Gears Page


J- NON-CIRCULAR GEARS: non-circular gear (NCG) is a special gear design with special characteristics and purpose. While a regular gear is optimized to transmit torque to another engaged member with minimum noise and wear and with maximum efficiency, a non-circular gear’s main objective might be ratio variations, axle displacement oscillationsand more. Common applications include textile machines, potentiometers, CVTs (continuously variable transmissions), window shade panel drives, mechanical presses and high torque hydraulic engines.

Go to > Robotic Mechanisms – NON-CIRCULAR Gears Page


K- 3D GEARS :

Go to > Robotic Mechanisms – 3D GEARS Page


L – MAGNETIC GEARS: All cogs of each gear component of magnetic gears act as a constant magnet with periodic alternation of opposite magnetic poles on mating surfaces. Gear components are mounted with a backlash capability similar to other mechanical gearings. At low load, such gears work without touching, giving increased reliability without noise.

Go to > Robotic Mechanisms – MAGNETIC GEARS Page
